Lesd-free solder wire

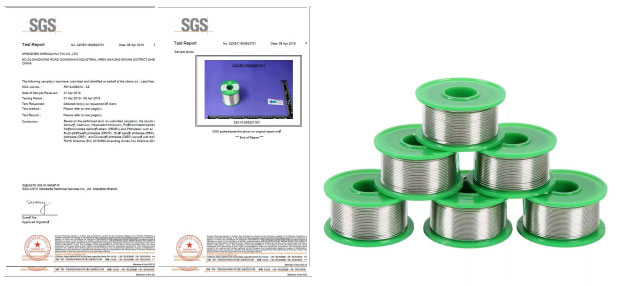

Lesd-free solder wire(1)

From the selection of high-quality pure tin to strict process monitoring, to the finalThe product delivery inspection fully ensures the best weldability of lead-free tin wire and its productsQuality, in the EU ROSH directive two hazardous substances lead (Pb), chromium (Cd)The content is far below the international standard. Comply with RoSH, REACH, etcRelevant regulations.

TypeAlloy compositionMelting pointCharacteristics of lead-free solderApplicable scope
   Tensile strength 100mm/minExpansion rate (%)Wettability (in the atmosphere)
Tin silver ternary alloySn-3.0 Ag-0.5 Cu210-2305.3kgf/mm227GoodManual soldering iron welding
Sn-3.9 Ag-0.5 Cu217-2305.3kgf/mm227GoodWave soldering
Sn-4.0 Ag-0.5 Cu217-2235.3kgf/mm227GoodReflow soldering
Tin silver binary alloySn-3Ag221-2304.7kgf/mm233GoodWave soldering
Sn-3.5Ag2214.7kgf/mm233GoodAnd reflow soldering
Sn-4Ag221-2354.7kgf/mm233Good
Tin silver binary alloySn-0.7Cu2273.3kgf/mm2 GoodManual soldering iron welding
Sn-1Cu227-2403.3kgf/mm2 GoodAnd wave soldering
Sn-3Cu227-3203.3kgf/mm2 Good
Other typeSn-5Sb230-2404.7kgf/mm238GoodReflow soldering
Sn-58Bi1387.6kgf/mm233GoodAnd solder paste products
Sn-50in117-223  Good
Lead free productsSn99.3Cu0.72277.4Suitable for high-end electronic products and export quality electronic and electrical industrial products380±20
Sn99Ag0.3Cu0.7217-2217.37380±20
Sn96.5Ag3.0Cu0.5217-2217.37380±20
Sn95Sb5(High temperature)2457.39Suitable for high pressure testing or aging testing at high temperatures after welding380±20
Sn99.95(Pure tin)2327.41Suitable for electroplating various circuit boards and for reducing copper content in tin furnaces with excessive copper content285±10
Sn42Bi58(Low temperature)1388.5Hot melt broken wire suitable for thermal fuses, thermal protectors, and thermal fuse links200±20
